Automatic Helilink

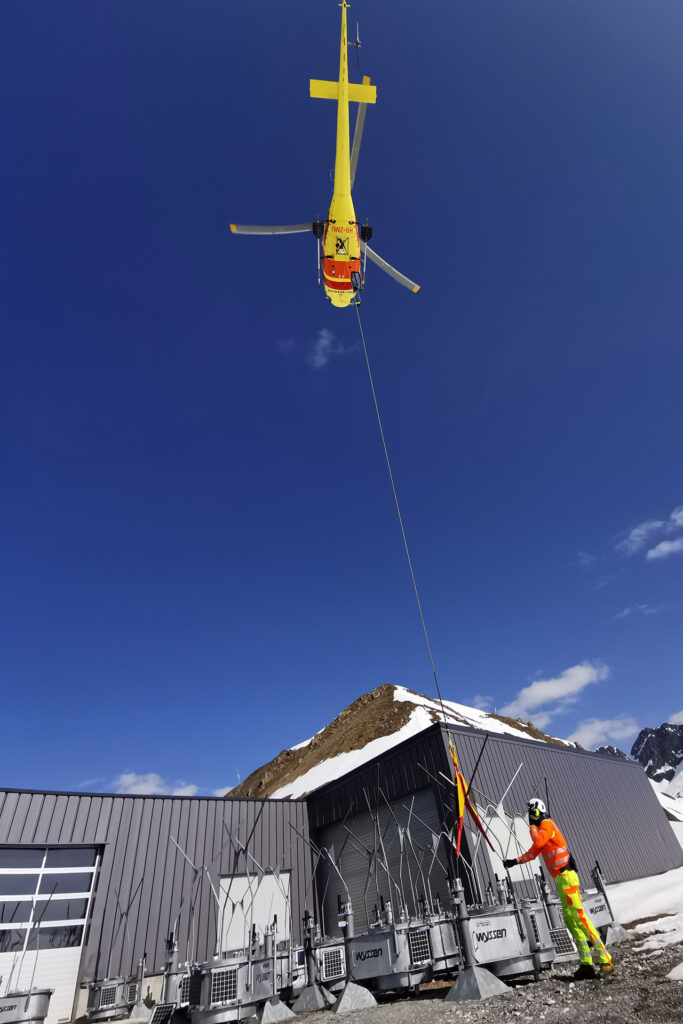

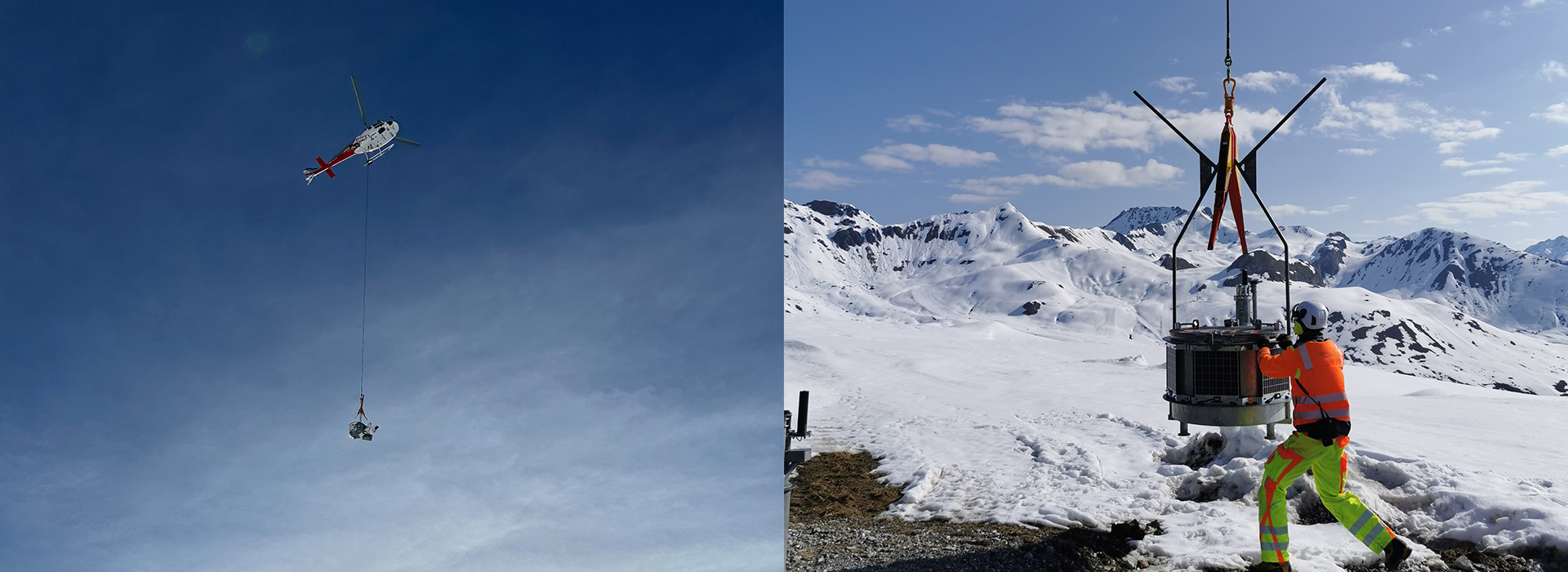

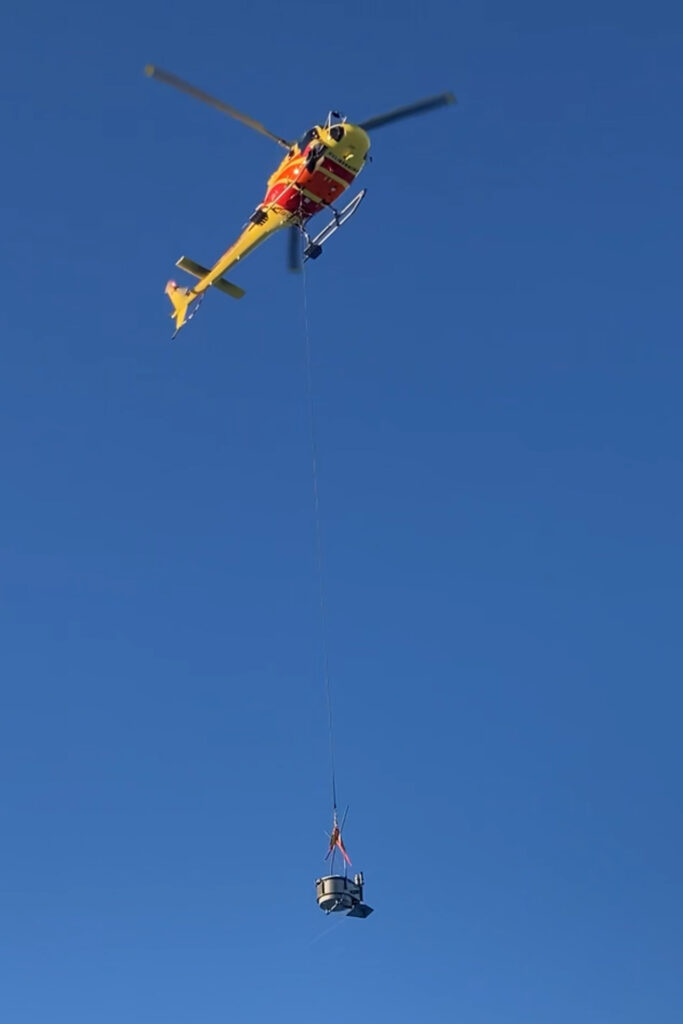

The Wyssen Automatic Heli Link RCH-23 is a one tool solution. It enables the pilot to place a Deployment Box on the tower and remotely disengage the attachment, using radio, in a manner analogous to traditional heli hooks. The pilot can also retrieve Deployment Boxes from the tower in a matter analogous to the well known manual Wyssen Heli Link HK02. The open/closed status, of the Wyssen Automatic Heli Link RCH-23, is indicated to the pilot by a red LED mounted on the tool.
Advantages
- Deployment boxes can be mounted on the tower and retrieved using one tool
- Improved transport of the deployment boxes by helicopter thanks to perfectly matched components
- Easy repositioning of deployment boxes placed on the wrong tower
- No people need to be in the hazardous zone below the helicopter
- No longline power required
- Longline can be used in different lengths

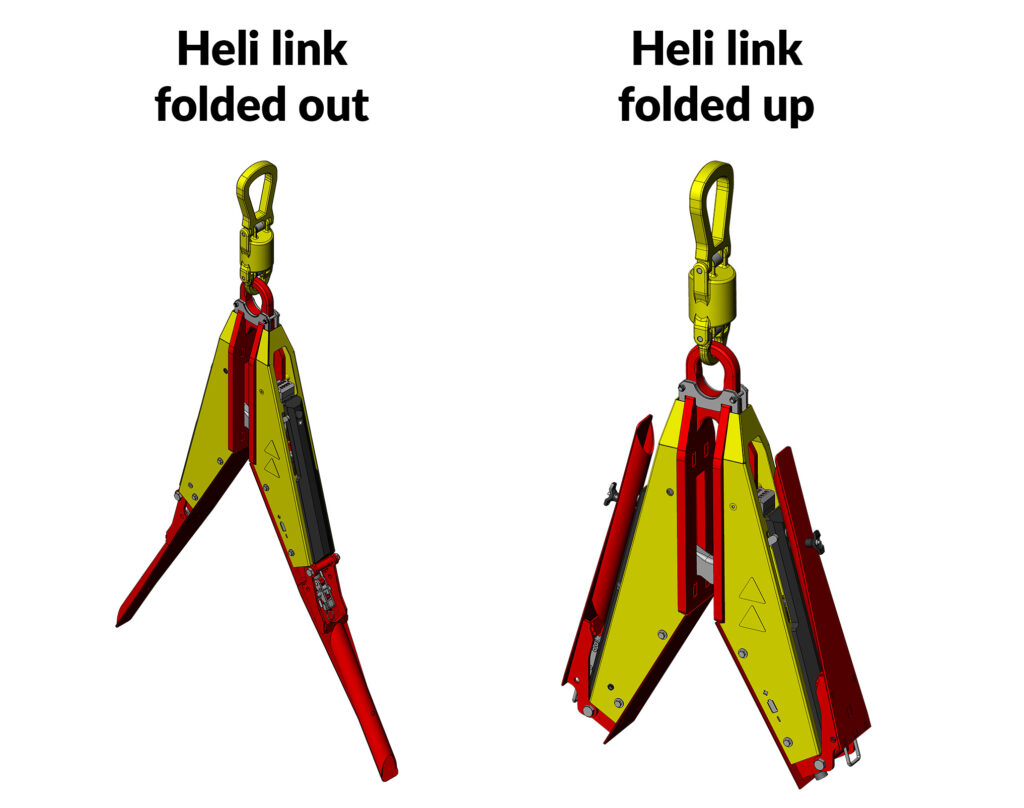

- Foldable for easier transportation in helicopter or basket
- Good stability in flight
Technical data
| Designation | Wyssen Automatic Helilink |
|---|---|
| Abbreviation | RCH-23 |
| Weight: | 33kg |
| Maximum load | 680kg |
| Dimensions (l x b x h): | 730 mm x 560 mm x 155 mm |
| Radio range | 120 m |
| Heli Link battery: | 24V (2x 12V) |
| Radio transmitter battery | 4.5 V (3x AAA-battery) |
| Temperature range: | -20°C - +55°C |
| Technical approval: | Technical approval BAZL (Federal Office of Civil Aviation, in Switzerland) |
