PETRA® People Tracking Radar

To monitor endangered areas in order to make sure no people are exposed to controlled released avalanches if visibility is poor
Previous slide
Next slide
Petra

People Tracking Radar

Functional principle

The people tracking radar (Doppler radar) transmits electromagnetic waves that are reflected by objects. The reflected radiation from moving objects has a different frequency than the transmitted radiation (Doppler effect), which is used to detect and track people. The data is sent to a server for processing and visualizing.

Download product datasheet

Technical data

PETRA® Specifications Description
Set up The radar installation is installed so that the area to be monitored is within its visibility and range. It can be mounted at a mast or building. Usually an optical or thermal imaging camera are combined in order to be able to determine whether the radar detected a human or animal.
Range approx. 300 / 800 / 1’200 m (985 / 2.625 / 3.940 ft), depending on model
Opening angle 90° x 20° / 10°
Communication Mobile phone network
Display fully integrated with the Wyssen Avalanche Control Center WAC.3®
Power supply electric grid, solar or fuel cell

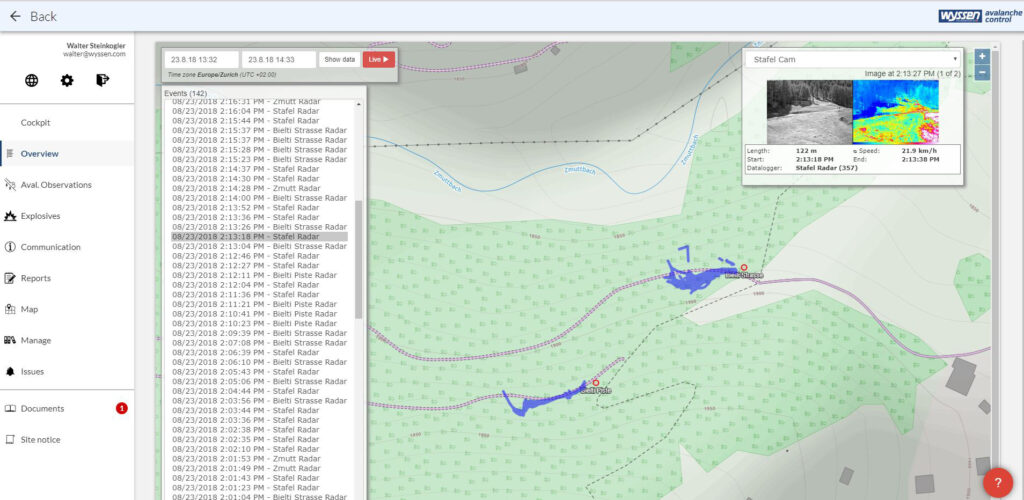

Display on WAC.3®

Darstellung Petra
