Schattenbachlawine Walenstadt – Modernization of the existing avalanche protection system

Facts

Project: Avalanche protection Walenstadt residential area
Place: Walenstadt, SG
Country: Switzerland
Year: 2021
Customer: Gemeinde Walenstadt
Protected Objects: Residential area, road
Installed systems: - 7x Wyssen Avalanche Towers LS12-5 with the 2K® charge
- 1x wildlife protection horn
- WAC.3® Cockpit and Communication
Video: An impressive film of the construction of the avalanche towers can be found in our
Youtube channel or directly under this link.

Initial Situation

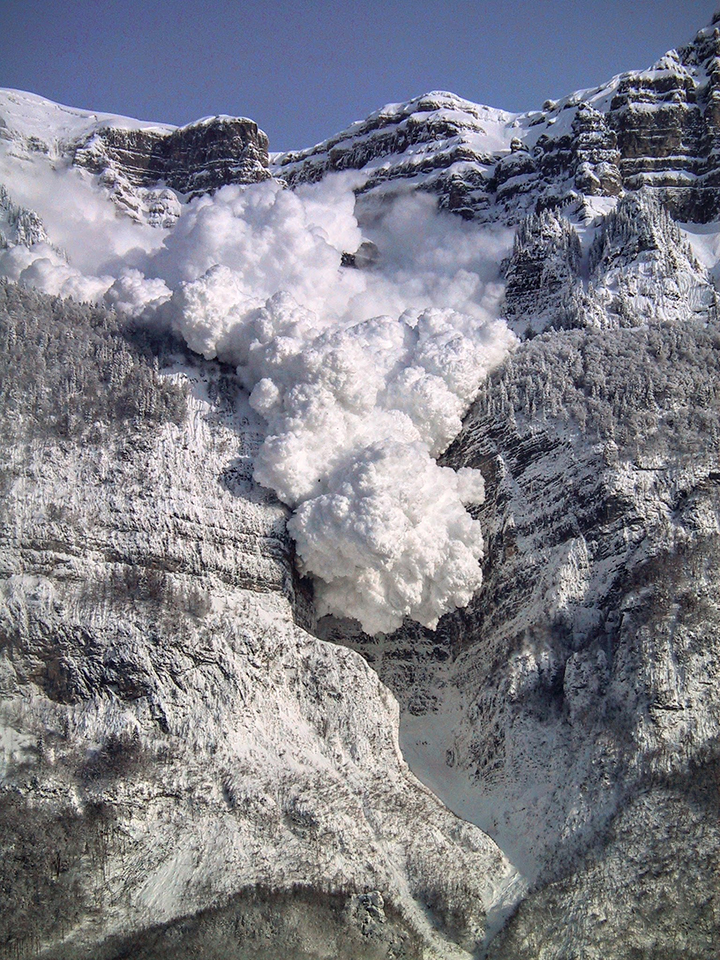

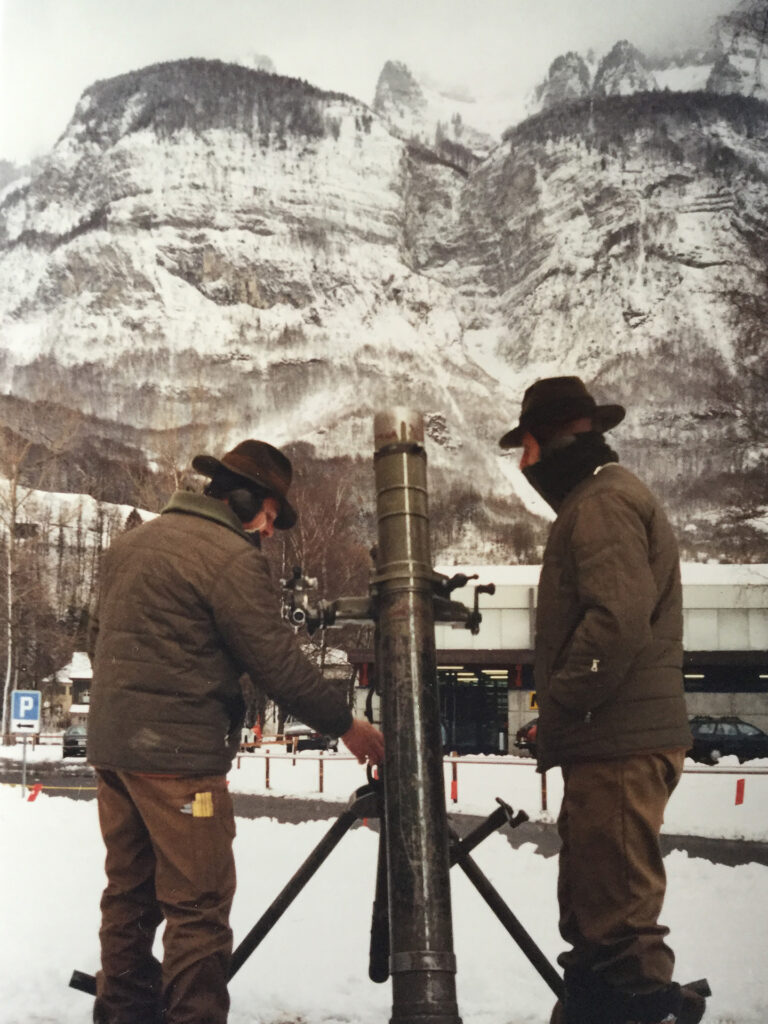

The Schattenbach avalanche near Walenstadt in the canton of St. Gallen (Switzerland) is a notorious avalanche that moves down into the valley as a large powder snow avalanche. The avalanche path descends steeply from “Chäserrugg” (2,300 m above sea level) to Walenstadt‘s residential area (430 m above sea level). Under dry snow conditions, the steep fall over the 200m high Schattenbach wall leads to the formation of a powder-snow avalanche that can cause serious damage to residential buildings. The municipality of Walenstadt has already sought to counteract the threat of the Schattenbach avalanche with various measures. In addition to the construction of a catchment basin around 1980 and a tunnel to Walenstadtberg constructed in 2006, various structural measures were also implemented within the avalanche starting area. The snow drift barrier on the Hinterrugg was built in 1989 and has since prevented large amounts of snow from being transferred into the avalanche starting area. In addition, a mine thrower was deployed in cooperation with the Swiss army and used for precautionary avalanche mitigation since 1970. With the prohibition of the use of army artillery for the artificial triggering of avalanches, an alternative was now sought for protecting against the Schattenbach avalanche.

Our solution

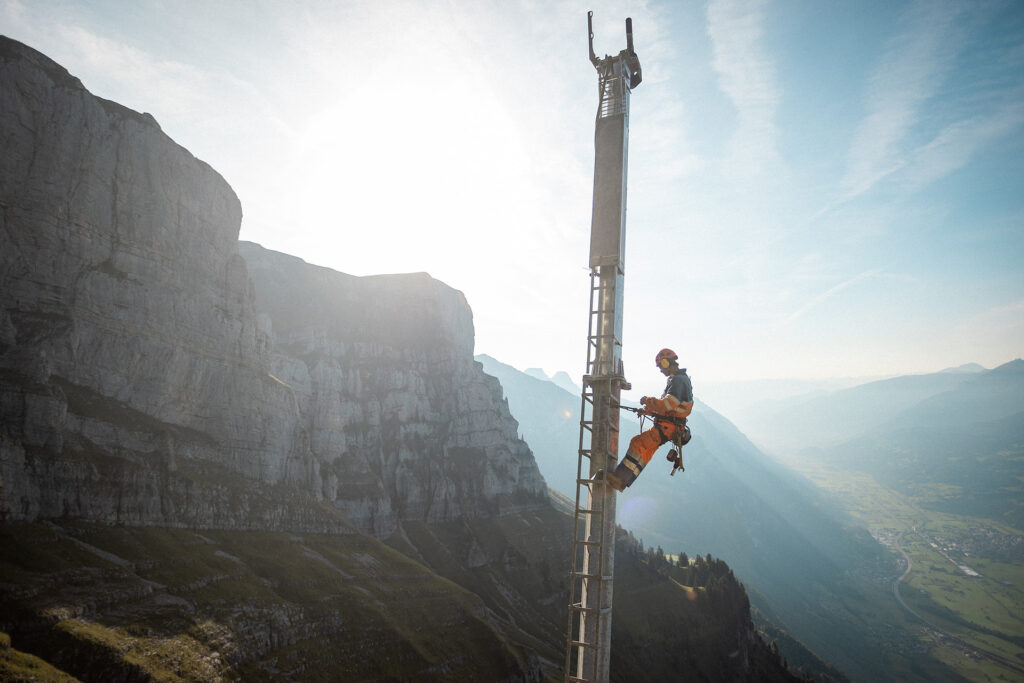

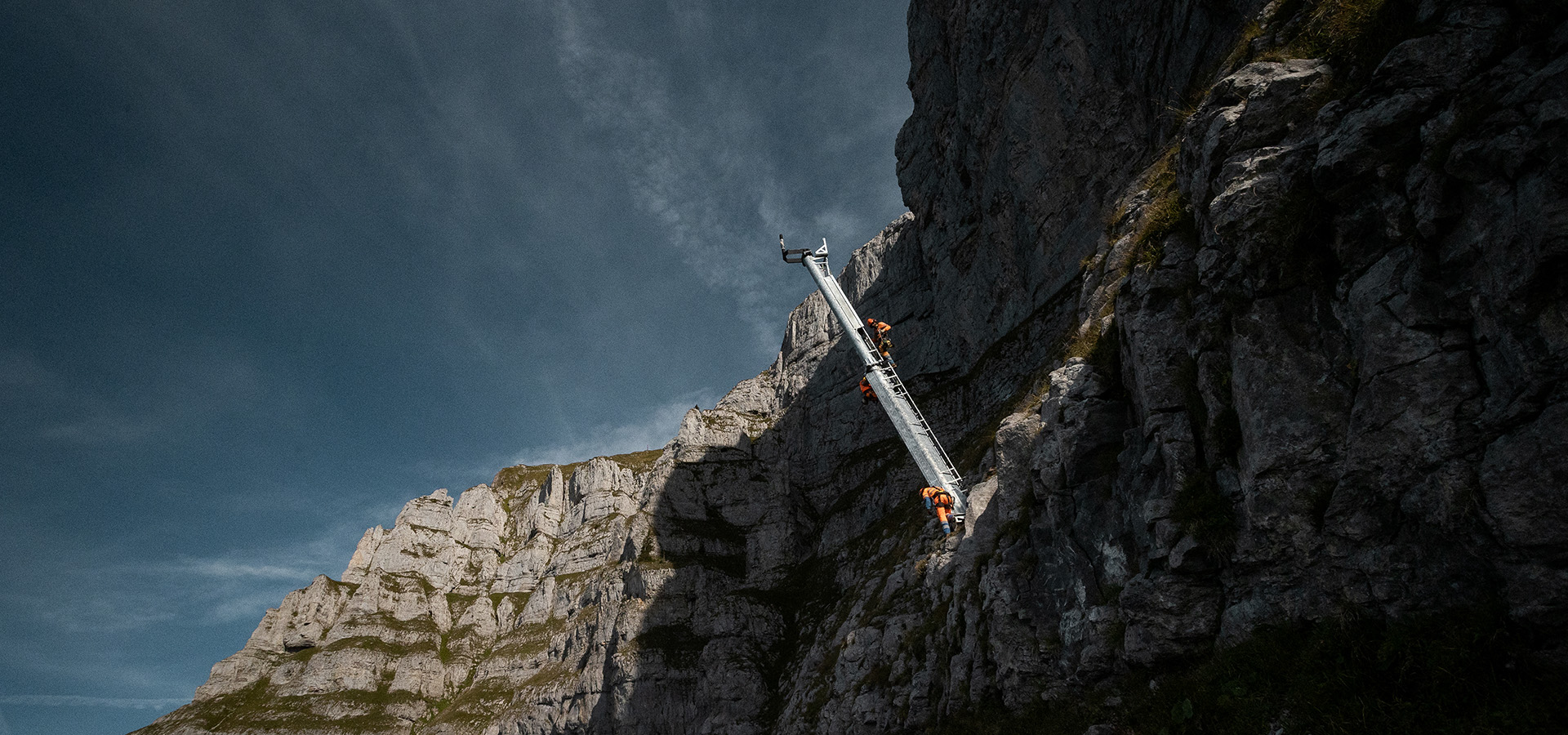

The installation of avalanche towers in the terrain guarantees the continuation of avalanche protection measures with safe and efficient methods that minimize the harmful effects of the Schattenbach avalanche. Since the avalanche towers make it possible to detonate charges even during periods of prolonged and intense snowfall, multiple discharges of the avalanche starting areas can now be performed in a single storm cycle. Since the detonations are performed above the snow cover, a large-scale explosive effect over a larger effective radius can be achieved. As a result, the seven installed avalanche towers provide effective coverage in the main avalanche starting zones. Overall, this method significantly reduces the necessity for lockdowns.

Our measures

Even more safety with the module Communication

In parallel with commissioning of the new avalanche towers, the Walenstadt Avalanche Service will also adapt its communication of the safety measures to the general public this winter. Thanks to the communication tool, it is now possible to generate messages with information about various restricted areas and send them to residents automatically via SMS or voice call from within the WAC.3® software.

Video

Video and Photos from the construction: Matthias Paintner, scale media | Digitale Markenerlebnisse (scale-vision.de)

Image source: Avalanche Team Walenstadt
